In this section, a detailed explanation for integrating Synap Editor into your system will be provided.
Try integration with a variety of development environments using reference guides.



All examples assume that the editor instance was configured as follows:

Synap Editor Configuration
new SynapEditor('synapEditor', {
	'editor.upload.image.api': "/uploadImage",
	'editor.upload.video.api': "/uploadVideo",
	'editor.upload.file.api': "/uploadFile",
	'editor.import.api': "/importDoc"
});


Uploading an image file

[request]

Send image file to your system via the URL that was configured as 'editor.upload.image.api' property.

Request URL: http://hostname/uploadImage
Request Method: POST
KeyDescriptionRequiredType
file

image file to be uploaded (multipart/form-data)

OBinary


[response]

Once the image has been successfully uploaded, your system should respond with the following data:

{
    "uploadPath":"uploads/36a43f36f442b5824c6b061eb734553d.png"
}
KeyDescriptionRequired
uploadPath

path to the uploaded image (as a URL that can be accessed from a web browser)

String

Uploading a video clip

[request]

Send video file to your system via the URL that was configured as 'editor.upload.video.api' property.

Request URL: http://hostname/uploadVideo
Request Method: POST
KeyDescriptionRequiredType
file

video file to be uploaded (multipart/form-data)

OBinary


[response]

Once the video has been successfully uploaded, your system should respond with the following data:

{
    "uploadPath":"uploads/36a43f36f442b5824c6b061eb734553d.mp4"
}
KeyDescriptionType
uploadPath

path to the uploaded video (as a URL that can be accessed from a web browser)

String


Uploading an arbitrary file

[request]

Send some arbitrary files to your system via the URL that was configured as 'editor.upload.file.api' property.

Request URL: http://hostname/uploadFile
Request Method: POST
KeyDescriptionRequiredType
file

file to be uploaded (multipart/form-data)

OBinary


[response]

Once the file has been successfully uploaded, your system should respond with the following data:

{
    "uploadPath":"uploads/36a43f36f442b5824c6b061eb734553d.docx"
}
KeyDescriptionRequired
uploadPath

path to the uploaded file (as a URL that can be accessed from a web browser)

String


Import Document

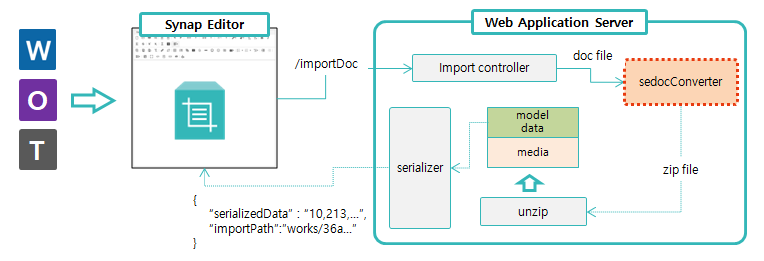

When you import a document, the format conversion is done at the server side by 'sedocConverter' module.
'sedocConverter' module runs on either Linux or Windows platform, and requires appropriate license to activate.


After choosing the document to be imported, the Editor sends it to the location designated with 'editor.import.api' key upon configuration (e.g. /importDoc).
The service code for that location (e.g. /importDoc) which is wrapping around 'sedocConverter' , needs to be prepared at the customer side, since the service environment differs from site to site.
Please refer to the link below for a sample implementation.

[request]

Send document file to be imported via the URL that was configured as 'editor.import.api' property.

Request URL: http://hostname/importDoc
Request Method: POST
KeyDescriptionRequiredType
file

document file to be imported (multipart/form-data)

OBinary


[response]

Once the file has been successfully converted, your system should respond with the following data:

{
    "serializedData":[10, 213, 156, ...],
    "importPath": "works/36a43f36f442b5824c6b061eb734553d"
}
KeyDescriptionType
serializedData

serialized document model data that can be consumed by Editor front-end

Array
importPath

path to the directory where the converted files reside

String
