RELEASE 2.4.0 OR ABOVE



API

SynapEditor.addPlugin(pluginName, pluginGenerator)

Add plugin to SynapEditor.

Params:

Name

Type

Description

pluginNamestringName of plugin.

pluginGenerator

functionFunction to generate plugin object.

Example:

var pluginName = "pluginName";
var pluginGenerator = function (editor) {
	//Returns plugin object.
	return {
		//...
	};
};
SynapEditor.addPlugin(pluginName, pluginGenerator);

Forms of Plugin Object

PreferenceTypeDescriptionPreference Definition
buttonDefArray | Object

buttonDef to add button to toolbar or menu.

Array Form

buttonDef: [{
	name: 'Name of the button', //This is a requirement when there are 2 or more buttons. If you want to add them to UI, use names of each button.
	label: 'Text to be displayed on the button.',
	iconSVG: 'SVG tag to be used as the icon of the button',
	onClickFunc: function () {
		//Function to be executed when the button is clicked.
	}
}, ...]

Object Form

buttonDef: {
	name: 'Name of the button', //It is not a requirement when there is only one button. Use the name of the plugin if you want to add it to UI.
	label: 'Text to be displayed on the button.',
	iconSVG: 'SVG tag to be used as the icon of the button',
	onClickFunc: function () {
		//Function to be executed when the button is clicked.
	}
}
shortcutDefArray | Object

shortcutDef to add a shortcut.

  • Key available for creating a shortcut.
    • Backspace
    • Tab
    • Enter
    • Esc
    • Space
    • PageUp
    • PageDown
    • End
    • Home
    • Left
    • Up
    • Right
    • Down
    • Insert
    • Delete
    • Cmd (for mac)
    • 0~9
    • A~Z
    • F1~F12
    • ;
    • +
    • ,
    • -
    • .
    • /
    • `
    • [
    • \
    • ]
    • '
  • How to create a shortcut
    • You may connect multiple keys with +.
    • Ex)
      • 'Ctrl+A'
      • 'Cmd+Backspace'

Array Form

shortcutDef: [{
	key: {
		windows: 'Shortcut for Windows',
		mac: 'Shortcut for mac'
	},
	option: {
		action: 'Name of Editor action',
		params: ['Editor action parameter 1', ...],
		focusIme: true or false //Focus onto the Editor after executing the shortcut
	}
}, ...]

Object Form

shortcutDef: {
	key: {
		windows: 'Shortcut for Windows',
		mac: 'Shortcut for mac'
	},
	option: {
		action: 'Name of Editor action',
		params: ['Editor action parameter 1', ...],
		focusIme: true or false //Focus onto the Editor after executing the shortcut
	}
}

Exercise

Plugin to insert 'Hello World~'

PluginGenerator Definition

./plugins/helloWorldInserter.js
var pluginName = "helloWorldInserter";
var pluginGenerator = function(editor) {
    return {
        buttonDef: {
            label: 'Hello World Inserter',
            iconSVG: `<svg xmlns="http://www.w3.org/2000/svg" version="1.1" viewBox="0 0 16 16">
                        <g xmlns="http://www.w3.org/2000/svg"><title>Layer 1</title>
                            <text stroke="#000000" transform="matrix(0.7835232019424438,0,0,1,0.2672135476022959,0) " xml:space="preserve"
                                    text-anchor="start" font-family="Helvetica, Arial, sans-serif" font-size="13" y="12.580528" x="-1.056391" fill="#000000">HW</text>
                        </g>
                 </svg>`,
            onClickFunc: function () {
                editor.execCommand('insertText', 'Hello World~');
            }
        }
    };
};

SynapEditor.addPlugin(pluginName, pluginGenerator);

Loading Created Plugin

index.html
<!-- synapeditor plugin -->
<script type="text/javascript" src="./plugins/helloWorldInserter.js"></script>

Adding Plugin Button to Toolbar in the Editor

./synapeditor.config.js
"editor.toolbar": ["bold", "italic", "underline", "strike", "helloWorldInserter"] //Add helloWorldInserter plugin to the toolbar.

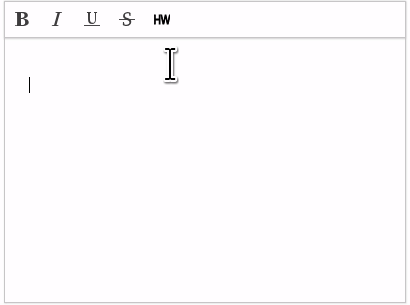

Result
